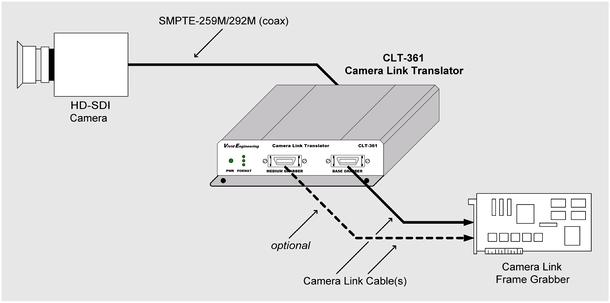

The CLT-361 Camera Link Translator enables the use of HD-SDI cameras with Camera Link fame grabbers. The CLT-361 supports 1080p, 1080i, and 720p camera video formats. Camera Link video is output as 24-bit RGB, 30-bit RGB, monochrome, or YCbCr.
The Camera Link converter features camera format auto-detection, a built-in test pattern generator, and front-panel video format indicator. The CLT-361 supports Camera Link base and medium configurations.
The Camera Link adapter is housed in a sturdy, compact aluminum enclosure. A locking-plug power supply is optional.
Due to the wordwide chip crisis this product is currently unavailable...
Please scroll down for features, documentation, and pricing
Frame Grabber has the mini (HDR/SDR) connector?
This product incorporates the standard (MDR) connector. Camera Link cables are readily available with the standard (MDR) connector on one end and the mini (HDR/SDR) connector on the other.
Cable Length Note:
To ensure data integrity, we recommend limiting Camera Link cable length for cameras with high clock frequencies as follows:
Camera Frequency
Max Cable Length
20-60 MHz
10m
61-79 MHz
7m
80-85 MHz
5m
For example, cables used to connect the CLT-361 to the frame grabber should be no longer than 7m since HD-SDI camera clock frequency is approximately 74 MHz.
Features:
Enables use of HD-SDI cameras with Camera Link frame grabbers
Description Camera Link Translator (with standard power supply) Camera Link Translator (with locking-plug power supply) Camera Link Translator (without power supply)
